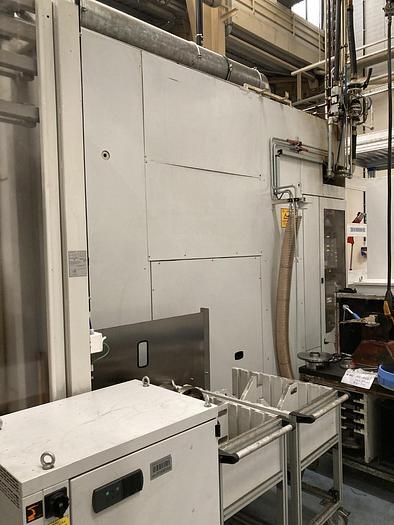

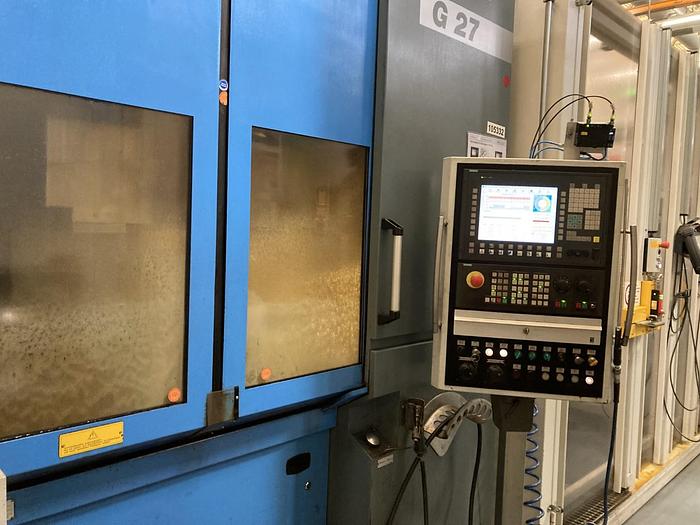

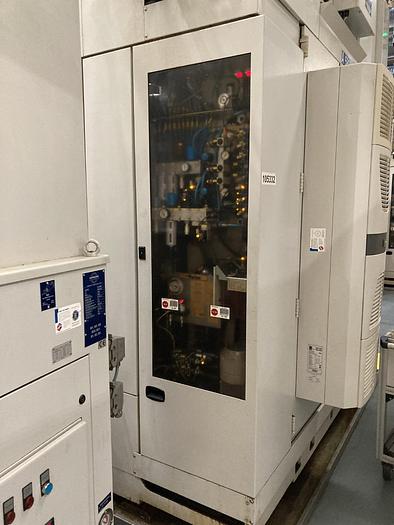

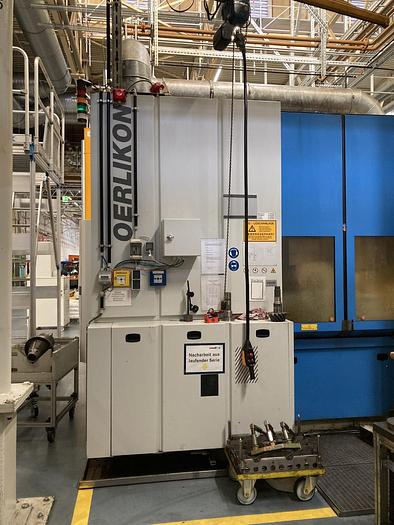

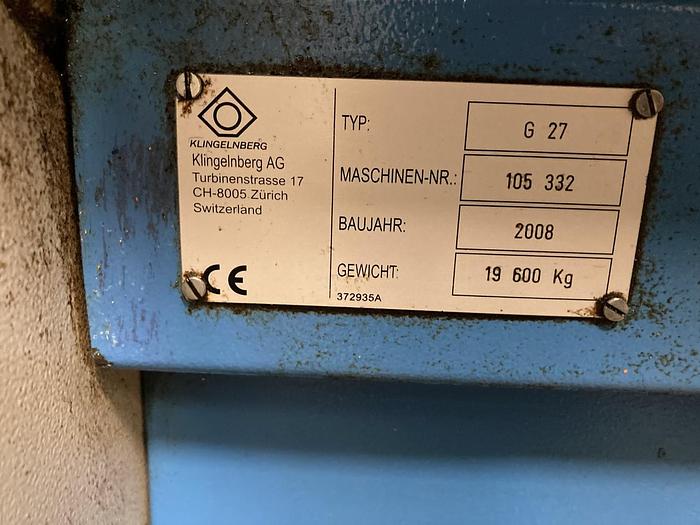

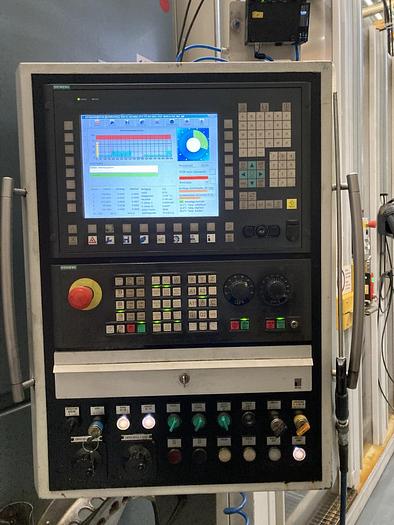

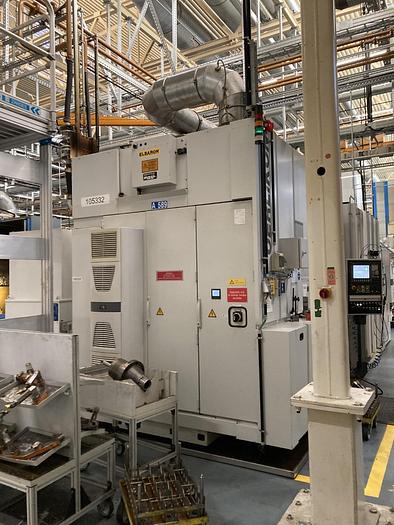

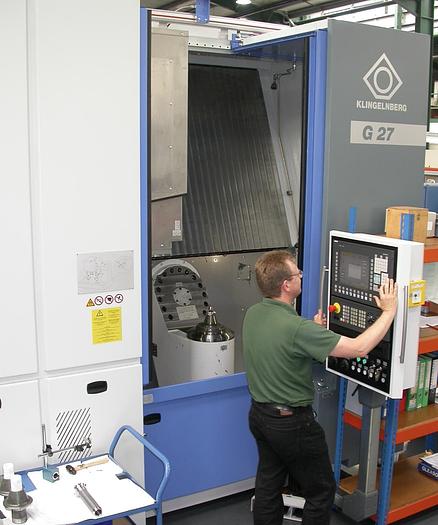

Bevel Gear Grinder KLINGELNBERG G 27

Availability: Immediate

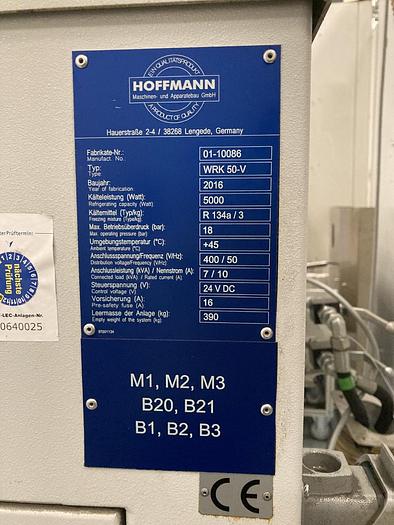

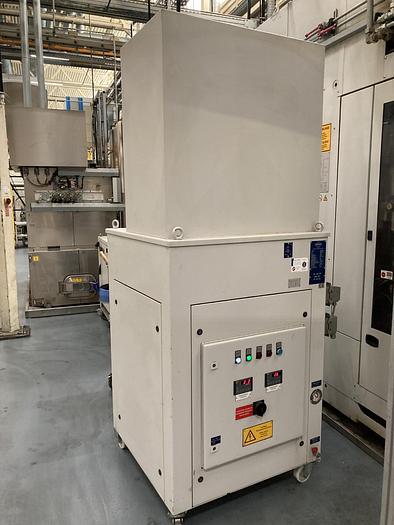

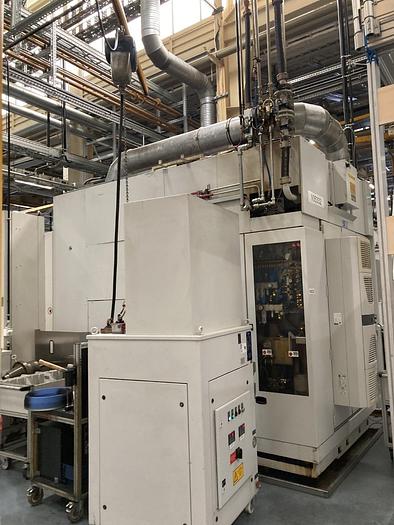

New Turbo Separator / Filter System HOFFMANN, Year 2016

Condition of the machine: Very Good

Measurement protocol: See attachment

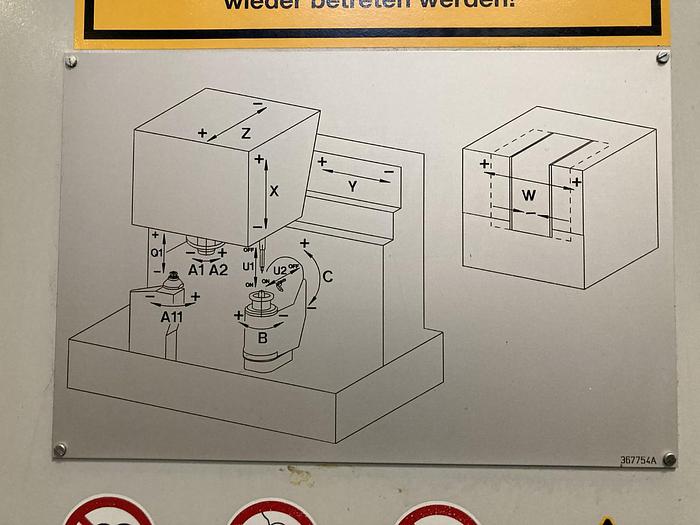

Workpiece:

• Maximum workpiece diameter: 300 mm
• Standard module range: ~ 0.7 – 8 mm
• Setting range for pitch cone angle: -90° to 90°
• Axis offset above and below center: ± 100 mm
• Helix angles to be ground (at tooth midpoint): No limitation
• Diameter of the workpiece spindle bore: 127 mm (5")
• Maximum workpiece spindle speed (optional): 700 (2500) rpm

Tool:

• Grinding wheel diameter: 50 – 230 mm (9")
• Maximum grinding spindle speed: 7500 rpm

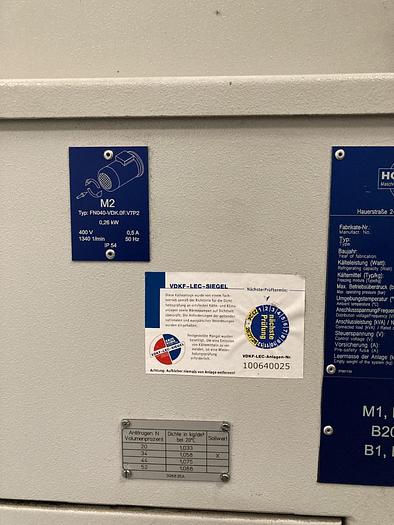

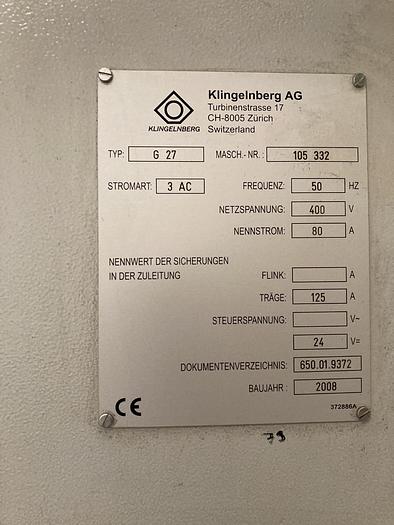

Electricity:

• Voltage: 3 x 400 V (standard)
• Control voltage: 24 V DC
• Frequency: 50 Hz (standard)
• Rated current: 100 A
• Machine fuse: 160 A
• Machine connection power: 110 kVA
• Protective ground free from interference voltage

Power supply requirements:

• Voltage tolerance: ± 10%
• Frequency accuracy: ± 1%
• Voltage interruption: max. 3 ms
• Voltage dip: max. 20% for max. 20 ms
• Voltage spikes: max. 200% for 1.5 ms
• Harmonic distortion: max. 10%
• Network symmetry: Voltage difference between 2 phases max. 2% of the nominal voltage

Compressed air:

• Quality: Class 3.3.2 / ISO 8573.1
• Network pressure: 6 bar
• Maximum quantity: 6 m³/h
• Moisture, pressure dew point: max. 10°C
• Particles: max. 40 µm
• Oil content: max. 25 mg/m³

Environmental conditions:

• Closed, dry room
• Room temperature: 10°C to 40°C
• Air humidity: max. 75%
• Floor must be level, dry, and clean
• Foundation floor load capacity: 4000 daN/m² = 820 lbs/sqf
• Vibrations: The floor should be as free as possible from external vibrations.

Emissions:

• Average machine sound pressure level according to DIN 45635
