ZEISS CMM CONTURA 10/12/6 active

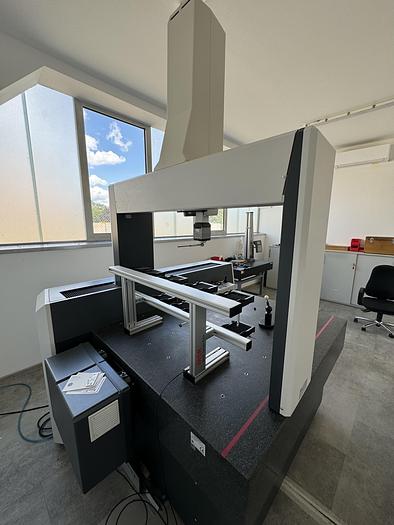

ZEISS CONTURA 10/12/6 with Accessories

(Order Confirmation + Equipment Features – see attached PDF)

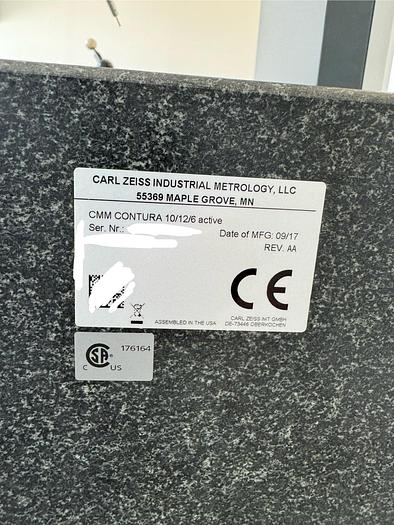

ZEISS CMM CONTURA 10/12/6 active

Measuring Range

X = 1000 mm, Y = 1200 mm, Z = 600 mm

Length Measurement Deviation (ISO 10360-2)

For VAST XT gold, VAST XTR gold:

E₀ = (1.7 + L/350)µm, PFTU = 1.7µm

Permissible Temperature Range

Specification: 18...22°C

Scanning Performance (ISO 10360-4)

For VAST XT gold, VAST XTR gold:

MPE_THP = 2.8µm in 40 s

Device Features & Equipment

Portal measuring machine with a fixed measuring table

Table height approx. 850 mm

Glass-ceramic scales

Integrated vibration damping

Integrated scanning control

VAST navigator for increased productivity

Includes AirSaver

Software license - basic package

Acceptance documents, user manuals

Device documentation on digital storage

Includes teleservice capability for the duration of the warranty

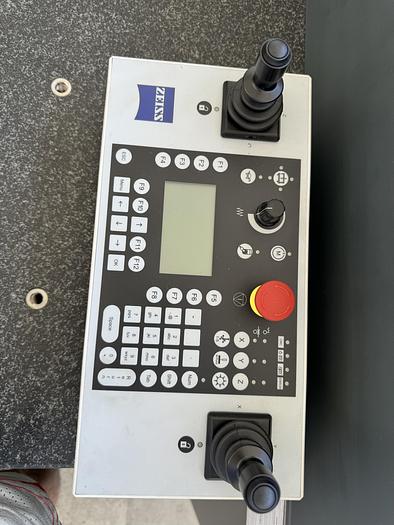

Numerical Control Panel (Standard)

Power ON function

2 progressive joysticks

LCD display

Function keys

Sensor Technology

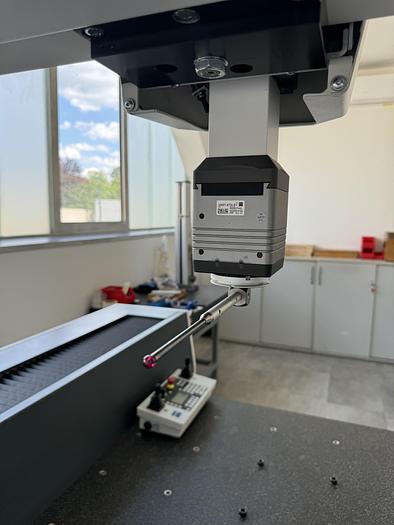

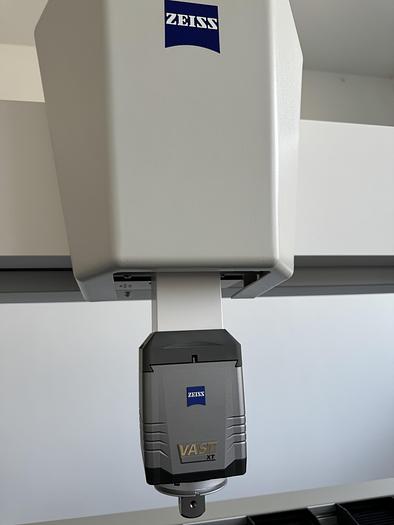

VAST XT gold scanning probe head

In combination with Calypso VAST navigator measuring technology

Increased scanning speed without loss of accuracy

Automatic probe calibration and compensation of static and dynamic probe deflection

Fast navigation between measurement objects

High accuracy even with extremely long probes

Technical Specifications

Active scanning process with high-resolution inductive systems

Active measuring force generator for pre-selectable constant probing force

Self-centering probing function

Mechanical collision protection

Probes up to 500 mm usable

Probe mass up to 500 g permitted

Measurement without probe rebalancing after each change

Includes 1 replacement stylus for reference probe

Reference stylus D = 8mm, L = 63.5 mm

HTG Option for CONTURA C99L active

Temperature compensation module

1 x workpiece temperature sensor

Measurement uncertainty of all sensors remains unchanged

Expansion of the permissible temperature range to 18...26°C

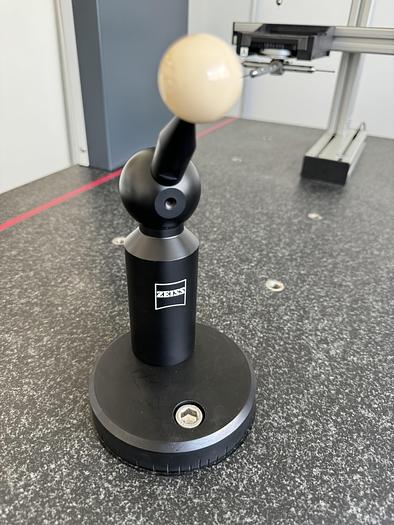

Calibration Sphere Holder RSH-214 with Calibration Sphere RS-DK30-C

Includes:

Base case RSH-214

Calibration sphere RS-DK30-C: DK=30 mm, ceramic with M6 shaft

Mounting kit for table plates with M12 thread

Construction height: 214 mm

Accessories

Multi-Sensor Rack for portal CMM with measuring range X=1000 mm

Rigid probe change magazine with 2 levels (upper level fixed, lower level height-adjustable)

No probe holders included (MT/VAST, RDS, ST3, VAST XXT, SP25/600 holders can be used)

Width: approx. 1100 mm, Height: approx. 450 mm

Included

Single probe slot MT/VAST Gold

Single storage slot MT/VAST Gold

Probe changer VAST/MT with cube (2-pack), activated ID chip

Probe budget
